BSBL 1-L High-Bay
Click to enlarge

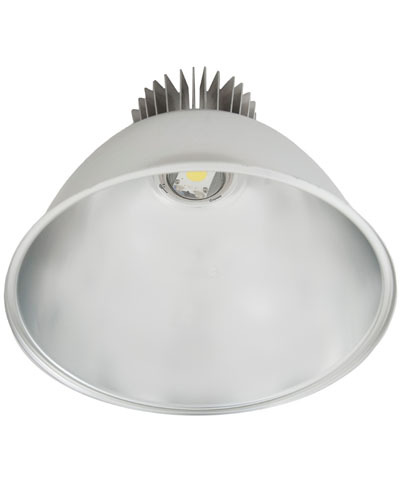

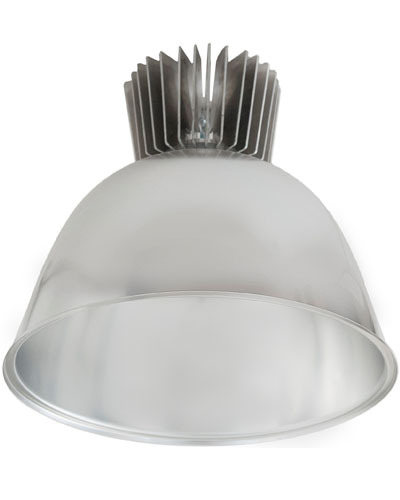

BSBL 1-L High-Bay

BSBL1-L HI-BAY is a luminaire for pentad installation in Basketball courts with 1 high power Led COB, with CRI Version>90, from 1x80W up to 1x150W wattage range, and 136lm/W up to 151 lm/W led efficacy with efficient thermal management  through frames for a better heat dissipation solution.Pure light without IR/UV radiation.Indoor use only.


  • Protection class: IP 40
  • The BSBL-1L HI BAY system ensure high efficient illumination.
  • The lighting solution by BSBL1L HIBAY led system meets the FIBA demands for HDTV-compliant broadcasting.
  • Dimming can be individually controlled via DMX,1-10,Dalli and can be step by step dimmed:.Dimming accessories to be order separately.
  • Degrees / Beam Angles: 60° 80º 100º 120º
  • Available versions at CRI ≥ 80 and also at 5700K CRI ≥ 90 for basketball courts
  • Working Lifetime 50,000 hrs.
