Tornado

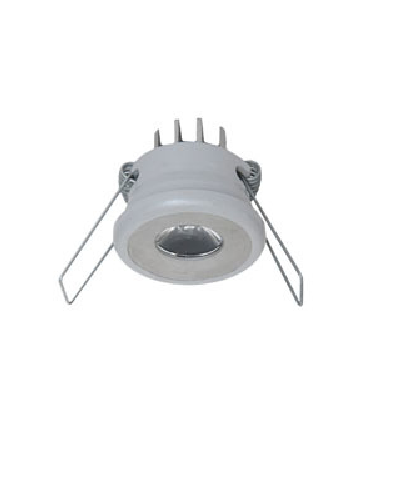

Fixed spotlight with INTERFOS LED Mofule IFM-MR11 consists the perfect combination of professional lighting result and energy saving for recessed installation. Pure light without IR/UV radiation. Easy installation. Ideal for shops, hotels, houses.





Technical Details

TECHNICAL SPECIFICATIONS

Mounting: Recessed on ceiling

Application: Indoor

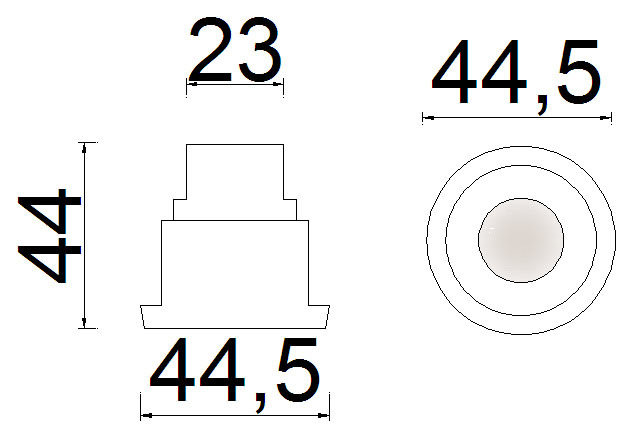

Dimensions: D45 x 44mm

Adjustable: No(fixed)

Ingress protection: IP20

Material: Body made of architectural grade turned aluminum, series 6082.

Light distribution: Symmetrical

Colors: Grey (RAL 70-47) ,Matt white (RAL 9010) and  Black matt (RAL 9005) Any RAL color available upon request

Led source power consumption: from 1W to 2,2W

Nominal led source luminous Flux (Tc 25ºC): 130-249lm

Input voltage: 3V

Input current: from 350mA to 700mA

Power supply unit: ordered separately

CCT: 2700K-3000K-4000K (Available in other neutral and cool white versions upon request)

Color Rendering Index: LED warm white CRI ≥80 (Available in CRI90 version upon request),LED cool white CRI ≥70

Degrees: 6º - 25º

Wiring: RED/BROWN positive (+)   BLACK/BLUE negative (-)

Operating temperature: -10ºC + 30ºC

Class of insulation: III

Typical life expectancy: Up to 50.000 hrs. to L70

ACCESSORIES

  • Honeycomb louver: Not Available
  • Linear spread lens: Not Available
