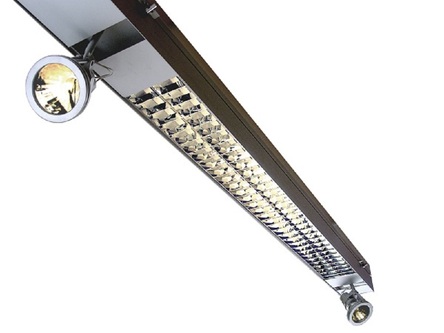

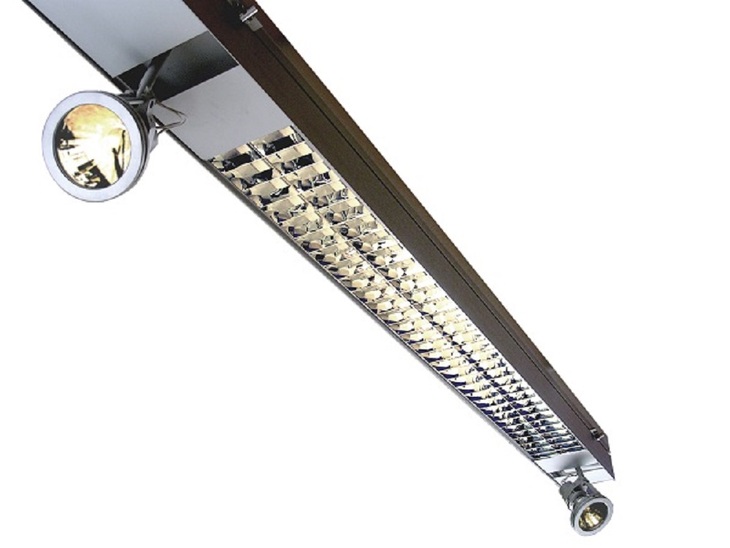

Linear suspended profile channel lighting system with independent luminaires modules

Product code :

11540  2xT16 FL lamps Double parabolic reflector edition

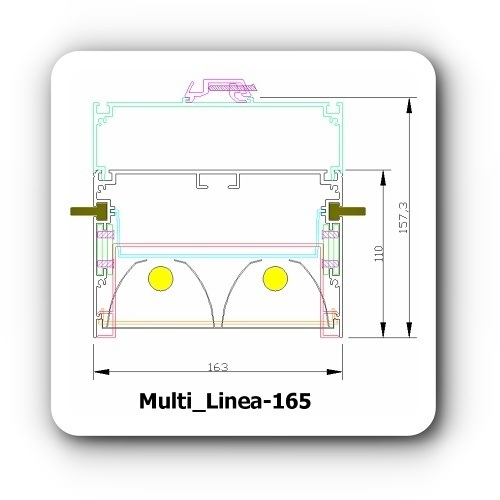

Housing - Cover profile : Extruded aluminium profile

• Badwick Dimensions-Watt :
• T16 edition
• 2x28/54W-1177 mm
• 2x35/49W-1477 mm
• 2x21/39W-  877 mm
• 2x14/24W-  577 mm

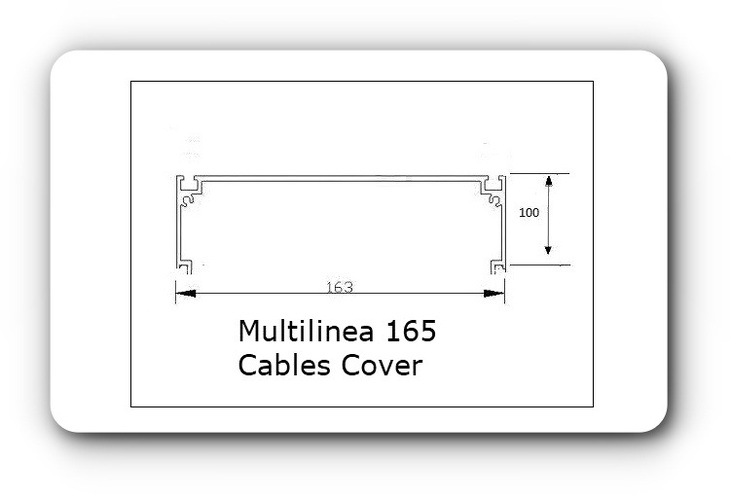

 * Modules length upon request see MULTILINEA 165 support profile category

Input Voltage : 220-240V AC/50-60Hz,PF ≥ 0.90

Light source : 2xT16 FL lamps

Reflector:  Double parabolic reflector made of clear aluminium 99%

Control Gear : Built-in electronic ballast for T16 FL lamps or Constant current Led driver

Protection class : IP20

Colours :

Application :      Beam Angles :

Lighting Sources  :

Accessories codes:

 11900 11901 11902  11903

Example of Ordering Code : 11541-A-B-C-D-CC.

A= Watt
B= Length
C = Kelvin (27)-2700K (30)-3000K (40)-4000K
D = Degrees ()
CC=Colour (10) White (20) Black (30) Grey

Type: Channel lighting system luminaires MULTILINEA 165.

Installation: Suspended.

Housing: Extruded anodised aluminium.

Reflector: Double parabolic reflector made of clear aluminum 99%.

Control Gear: Electronic driver for Linear LED-Electronic ballast for Fluorescent tubes T16.

Dimming:Dimmable options available.
DALI
1-10V
Push dimming.

Badwick Dimensions-Watt :

• T16 edition
• 2x28/54W-1177 mm
• 2x35/49W-1477 mm
• 2x21/39W-  877 mm
• 2x14/24W-  577 mm

IP: 20.

Colors: Powder coated.

• Grey (RAL 7047) (RW501-I)
• black matt (RAL 9005 fiji),
• white matt (RAL 9016 fiji).

Accessories:
For single or linear mounting to be ordered separately.
Adjustable suspension consisting of stainless steel cable and
regulators.
