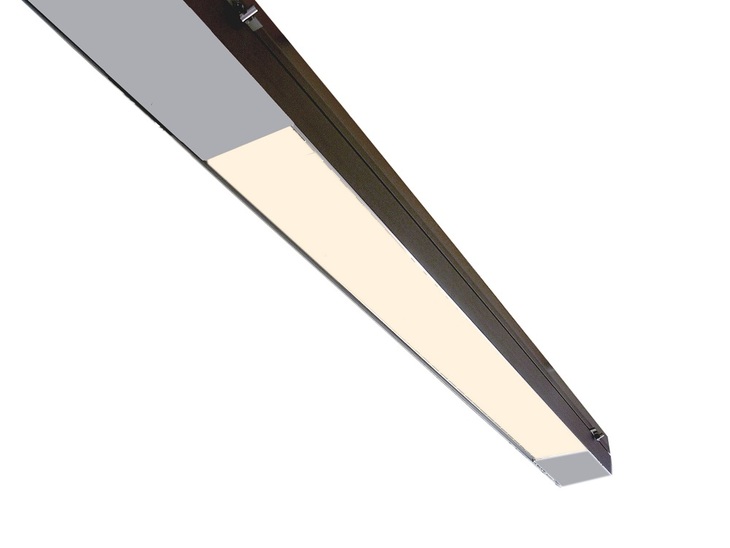

MULTILINEA 165  Channel Lighting System OPAL PMMA Diffusser
Click to enlarge
MULTILINEA 165  Channel Lighting System OPAL PMMA DiffusserMULTILINEA 165  Channel Lighting System OPAL PMMA DiffusserMULTILINEA 165  Channel Lighting System OPAL PMMA DiffusserMULTILINEA 165  Channel Lighting System OPAL PMMA DiffusserMULTILINEA 165  Channel Lighting System OPAL PMMA DiffusserMULTILINEA 165  Channel Lighting System OPAL PMMA DiffusserMULTILINEA 165  Channel Lighting System OPAL PMMA DiffusserMULTILINEA 165  Channel Lighting System OPAL PMMA DiffusserMULTILINEA 165  Channel Lighting System OPAL PMMA DiffusserMULTILINEA 165  Channel Lighting System OPAL PMMA DiffusserMULTILINEA 165  Channel Lighting System OPAL PMMA DiffusserMULTILINEA 165  Channel Lighting System OPAL PMMA DiffusserMULTILINEA 165  Channel Lighting System OPAL PMMA DiffusserMULTILINEA 165  Channel Lighting System OPAL PMMA DiffusserMULTILINEA 165  Channel Lighting System OPAL PMMA Diffusser

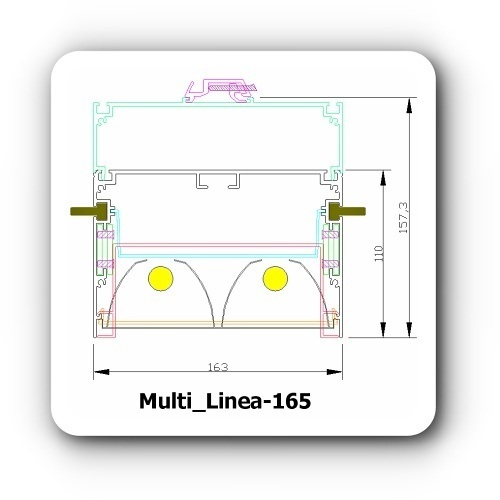

Linear suspended profile, channel lighting system with independent luminaires modules



Product code :

  • 11644  2xLinear LED edition  PMMA Opal Diffuser
  • 11645  2xLinear LED edition  Microprismatic

Housing - Cover : Extruded  aluminium profile

Badwick Dimensions-Watt :

  •   Linear LED edition /4000K CRI >80
  • 56/64W-1140 mm   9760/ 11200lm
  • 64/80W-1419 mm  12200/14020lm
  • 40/48W-  859 mm    7520 8700lm
  • 26/32W-  579 mm    5020/  5800lm

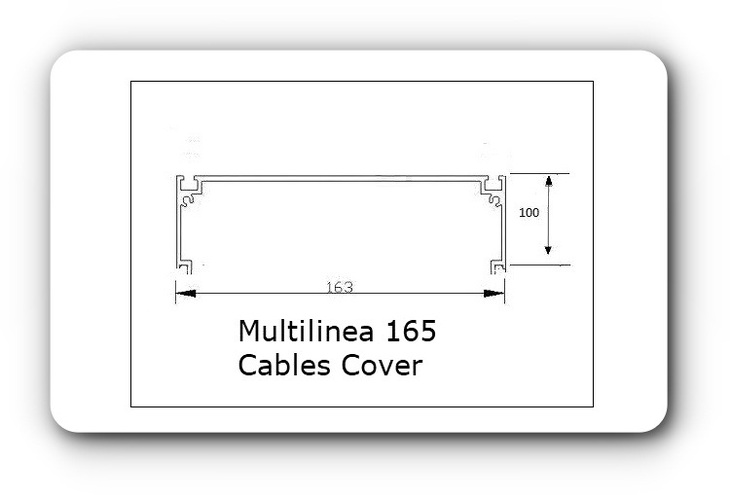

* Modules length upon request see MULTILINEA 165 support profile category

*  2700K-3000K can be offered upon request

Input Voltage : 220-240V AC/50-60Hz,PF ≥ 0.90

Light source : 2xLinear LED

Diffusser :  Matt Opal PMMA

UGR : <19

Control Gear : Built-in Constant current Led driver for Linear LED edition or Electronic ballast for T16 edition

Protection class  : IP44

Colours



Application :     Beam Angles :



                                                                                                                                                                                                                                                                                                                                                  Lighting Sources  :

Accessories ordering codes:

11900   11901 11902  11903



Example of Ordering Code : 11644-A-B-C-D-CC
A= Watt
B= Length
C = Kelvin (27)-2700K (30)-3000K (40)-4000K
D = Degrees (120º)
CC=Colour (10) White (20) Black (30) Grey

















Technical Details



Type: Channel lighting system luminaires MULTILINEA 165.

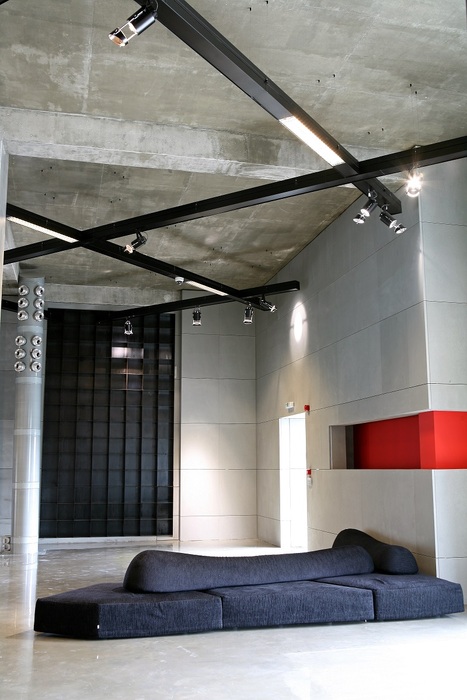

Installation: Suspended.

Housing-Cover: Extruded aluminium profile

Diffuser: Matt Opal PMMA.LT 87 high transmission diffuser

Control Gear: Electronic driver for Linear LED -Electronic ballast for Fluorescent tubes T16

Dimming:Dimmable options available.

  •  DALI
  •  1-10V
  •  Push dimming

Badwick Dimensions-Watt :

Linear LED edition /4000K CRI >80

56-64W-1140 mm 9760/ 11200lm
64-80W-1419 mm 12200/14020lm
40-48W- 859 mm 7520/ 8700lm
26-32W- 579 mm 5020/ 5800lm

IP: 44

IK: 05

Colors: Powder coated.Grey (RAL 7047) (RW501-I) black matt (RAL 9005 fiji), white matt (RAL 9016 fiji)

Application:Indoor use only

Accessories:

  • For single or linear mounting to be ordered separately.

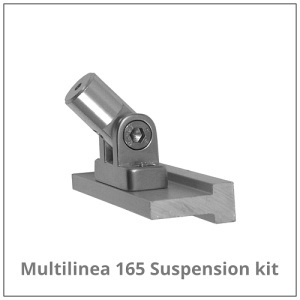

  • Adjustable suspension consisting of stainless steel cable and
    regulators.
