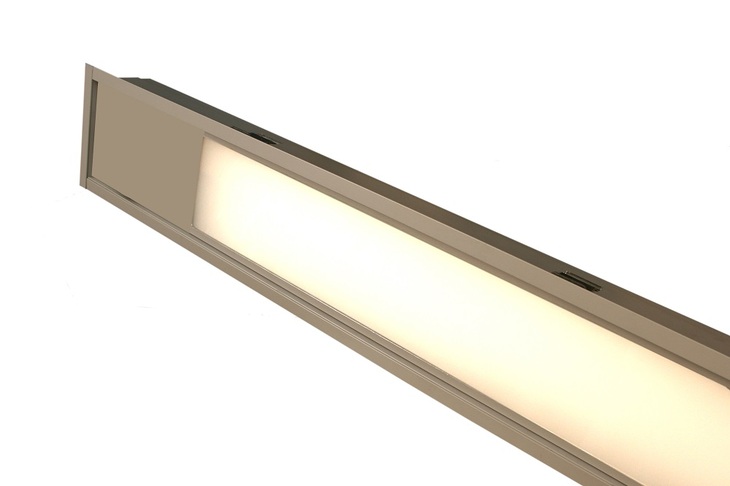

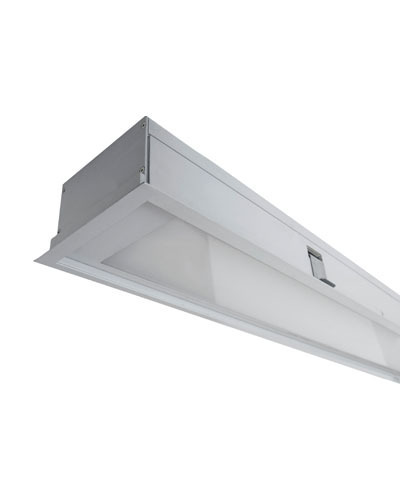

MULTILINEA 200  Semitrimless  Modules OPAL PMMA DIFFUSER
Click to enlarge
MULTILINEA 200  Semitrimless  Modules OPAL PMMA DIFFUSERMULTILINEA 200  Semitrimless  Modules OPAL PMMA DIFFUSERMULTILINEA 200  Semitrimless  Modules OPAL PMMA DIFFUSERMULTILINEA 200  Semitrimless  Modules OPAL PMMA DIFFUSERMULTILINEA 200  Semitrimless  Modules OPAL PMMA DIFFUSERMULTILINEA 200  Semitrimless  Modules OPAL PMMA DIFFUSERMULTILINEA 200  Semitrimless  Modules OPAL PMMA DIFFUSERMULTILINEA 200  Semitrimless  Modules OPAL PMMA DIFFUSERMULTILINEA 200  Semitrimless  Modules OPAL PMMA DIFFUSERMULTILINEA 200  Semitrimless  Modules OPAL PMMA DIFFUSERMULTILINEA 200  Semitrimless  Modules OPAL PMMA DIFFUSERMULTILINEA 200  Semitrimless  Modules OPAL PMMA DIFFUSERMULTILINEA 200  Semitrimless  Modules OPAL PMMA DIFFUSER

Linear recessed on ceiling semitrimless profile channel lighting system with independent luminaires modules



Product code :

  • 13480 2xLinear LED edition  Opal PMMA diffuser
  • 13481 2xLinear LED edition  Microprismatic



Housing - Cover profile: Extruded  aluminium profile

Badwick Dimensions-Watt :

  • Linear LED edition /4000K CRI >80
  • 56,0-64,0W-1140 mm   9760/ 11200lm
  • 64,0-80,0W-1419 mm  12200/14020lm
  • 40,0-48,0W-  859 mm    7520/  8700lm
  • 26,0-32,0W-  579 mm    5020/  5800lm

* Modules length upon request see MULTILINEA 165 support profile category

* 3000K and 2700K can be offered upon request

Input Voltage : 220-240V AC/50-60Hz,PF ≥ 0.90

Light source : 2xLinear LED

Diffusser :  Matt Opal PMMA or microprismatic  diffuser

UGR : <19

Control Gear : Built-in Constant current Led driver or electronic ballast for T16 edition

Protection class  : IP44

Colours



Beam Angles :



Lighting Sources  :



Accessories ordering codes: 11902    11903



Example of Ordering Code: 13480-A-B-C-D-CC
A= Watt
B= Volt
C = Kelvin (27)-2700K (30)-3000K (40)-4000K
D = Degrees (120º)
CC=Colour (10) White (20) Black (30) Grey

.

Technical Details



Type: Channel lighting system luminaires MULTILINEA 200.

Installation: Recess on ceiling

Housing: Extruded profile anodised aluminium.

Diffuser: Matt Opal PMMA glass diffuser indirect /direct light emission.LT 87 high transmission diffuser.

Reflector: Clear aluminum 99%.

Control Gear: Electronic driver for Linear LED-Electronic ballast for Fluorescent tubes T16.

Dimming:Dimmable options available.
DALI
1-10V
Push dimming.

Badwick Dimensions-Watt :

  • Linear LED edition /4000K CRI >80
  • 56,0-64,0W-1140 mm   9760/ 11200lm
  • 64,0-80,0W-1419 mm  12200/14020lm
  • 40,0-48,0W-  859 mm    7520/  8700lm
  • 26,0-32,0W-  579 mm    5020/  5800lm

IP: 44

IK: 05.

Colors: Powder coated.

  • Grey (RAL 70-47) (RW501-I)
  • black matt (RAL 9005 fidgi),
  • matt white (RAL 9010).

Accessories:

For single or linear mounting to be ordered separately.
