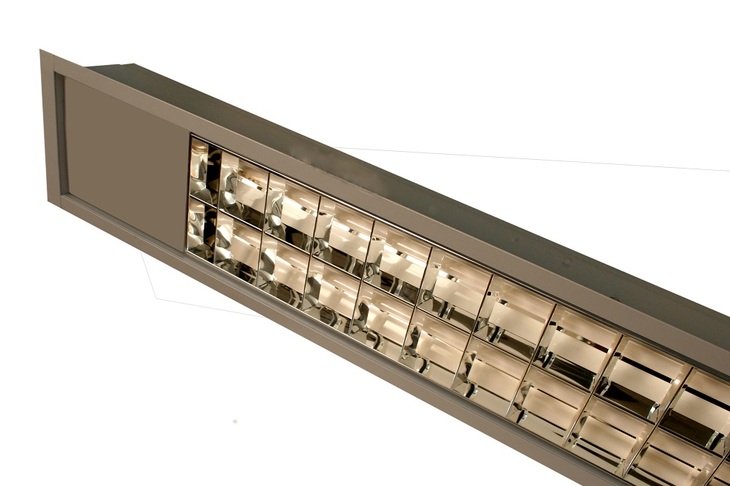

MULTILINEA 200  Semitrimless Lighting system Double parabolic reflector
Click to enlarge
MULTILINEA 200  Semitrimless Lighting system Double parabolic reflectorMULTILINEA 200  Semitrimless Lighting system Double parabolic reflectorMULTILINEA 200  Semitrimless Lighting system Double parabolic reflectorMULTILINEA 200  Semitrimless Lighting system Double parabolic reflectorMULTILINEA 200  Semitrimless Lighting system Double parabolic reflectorMULTILINEA 200  Semitrimless Lighting system Double parabolic reflectorMULTILINEA 200  Semitrimless Lighting system Double parabolic reflectorMULTILINEA 200  Semitrimless Lighting system Double parabolic reflectorMULTILINEA 200  Semitrimless Lighting system Double parabolic reflectorMULTILINEA 200  Semitrimless Lighting system Double parabolic reflectorMULTILINEA 200  Semitrimless Lighting system Double parabolic reflectorMULTILINEA 200  Semitrimless Lighting system Double parabolic reflectorMULTILINEA 200  Semitrimless Lighting system Double parabolic reflector

Recessed on ceiling profile channel lighting system with double parabolic reflector and independet luminaires modules



Product code :

  • 13450 2xT16 FL lamps edition



Housing - Cover profile : Extruded  aluminium profile

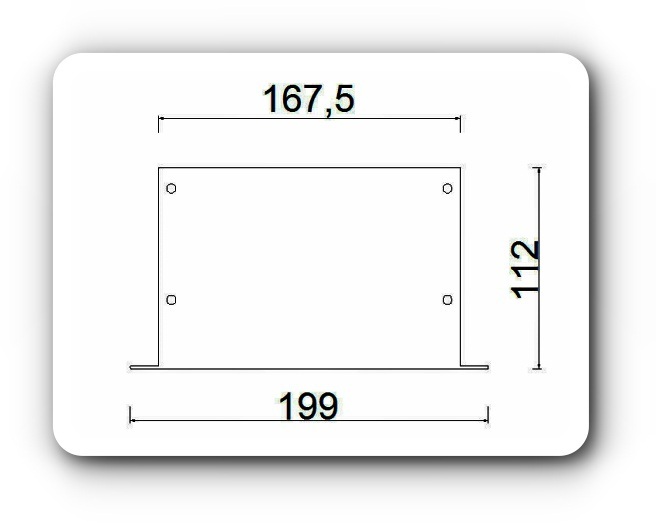

 Badwick Dimensions-Watt :

  • T16 edition
  • 2x28/54W-1177 mm
  • 2x35/49W-1477 mm
  • 2x21/39W877 mm
  • 2x14/24W577 mm



Input Voltage : 220-240V AC/50-60Hz,PF ≥ 0.90

Light source : 2xT16 FL lamps

Reflector: Double parabolic reflector

Control Gear : Built-in electronic ballast for T16 FL lamps or Constant current Led driver

Protection class : IP20

Colours

Application:

Beam Angles :

Lighting Sources  :



Accessories  :



Modules upon request see MULTILINEA 200 support profile  category.

Technical Details

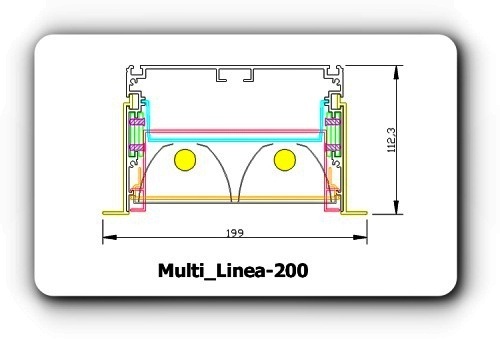

Type: Channel lighting system luminaires MULTILINEA 200.

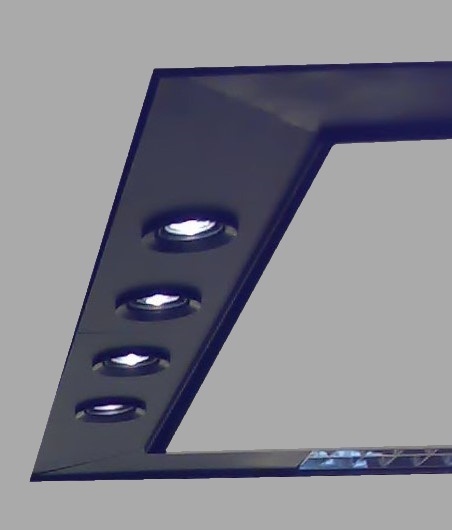

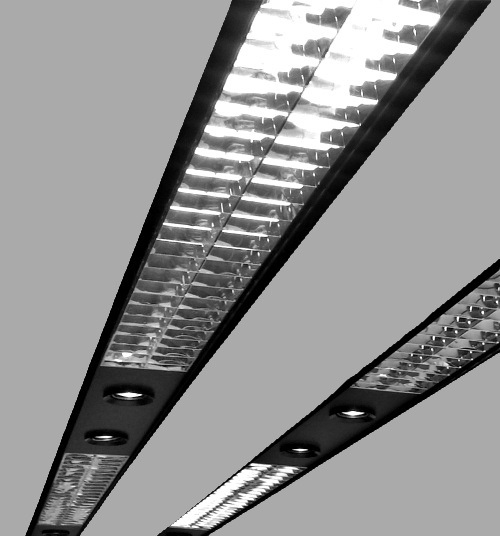

Installation: Recess on ceiling

Housing: Extruded profile anodised aluminium.

Reflector: Duble parabolic reflector made of clear aluminium 99%

Control Gear: Electronic driver for Linear LED-Electronic ballast for Fluorescent tubes T16.

Dimming:Dimmable options available.

DALI
1-10V
Push dimming.

Badwick Dimensions-Watt :

  • T16 edition
  • 2x28/54W-1177 mm
  • 2x35/49W-1477 mm
  • 2x21/39W-  877 mm
  • 2x14/24W-  577 mm



IP: 20

Colors: Powder coated.

  • Grey (RAL 70-47) (RW501-I)
  • black matt (RAL 9005 fidgi),
  • matt white (RAL 9010).
  • Any other colour upon request

Application:

Accessories:

For single or linear mounting to be ordered separately.
