MULTILINEA  200 Semitrimless Support  Profile modules
Click to enlarge
MULTILINEA  200 Semitrimless Support  Profile modulesMULTILINEA  200 Semitrimless Support  Profile modulesMULTILINEA  200 Semitrimless Support  Profile modulesMULTILINEA  200 Semitrimless Support  Profile modulesMULTILINEA  200 Semitrimless Support  Profile modulesMULTILINEA  200 Semitrimless Support  Profile modulesMULTILINEA  200 Semitrimless Support  Profile modulesMULTILINEA  200 Semitrimless Support  Profile modulesMULTILINEA  200 Semitrimless Support  Profile modulesMULTILINEA  200 Semitrimless Support  Profile modulesMULTILINEA  200 Semitrimless Support  Profile modules

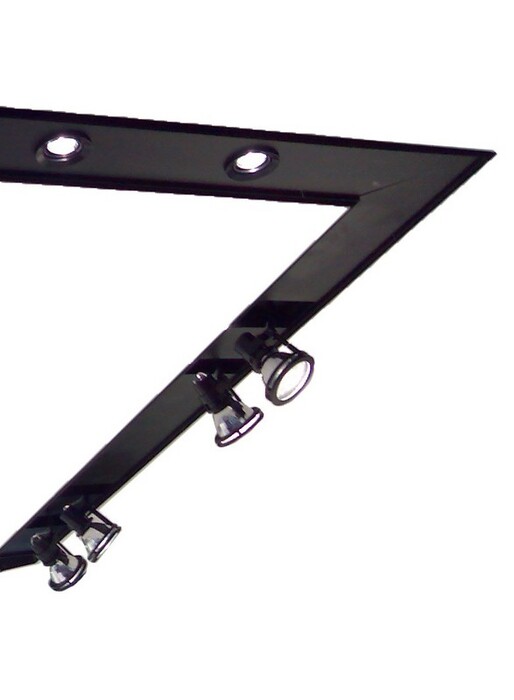

The multifunctional modules Multilinea 200 as 90 degree fixed-angle module, the 2-channel straight link, the cross-connector and the T-link offer the architect or designer the opportunity to create multiple lighting designs using models for fluorescent lighting independent lighting fixtures with spotlights, headlamps, linear LED line  light.

Product code :

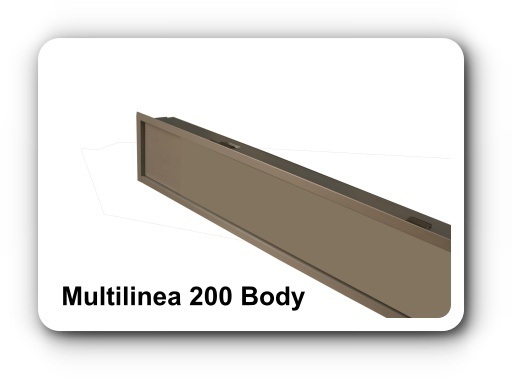

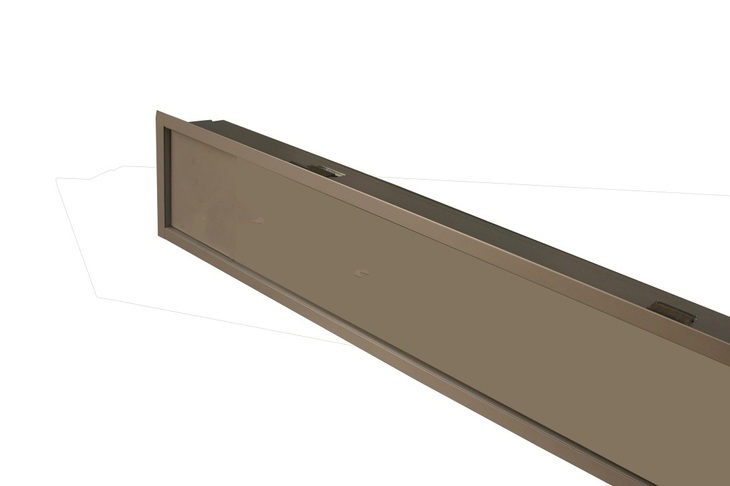

13950 : Main body

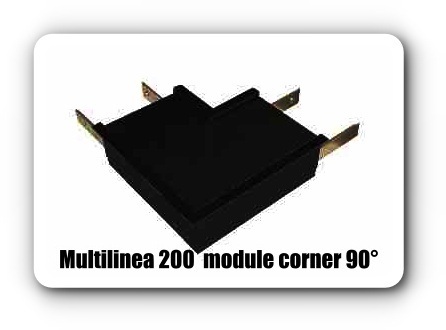

13960 : Corner 90

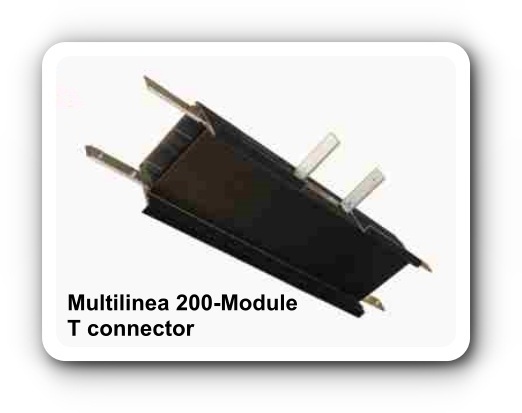

13970 : T-connection

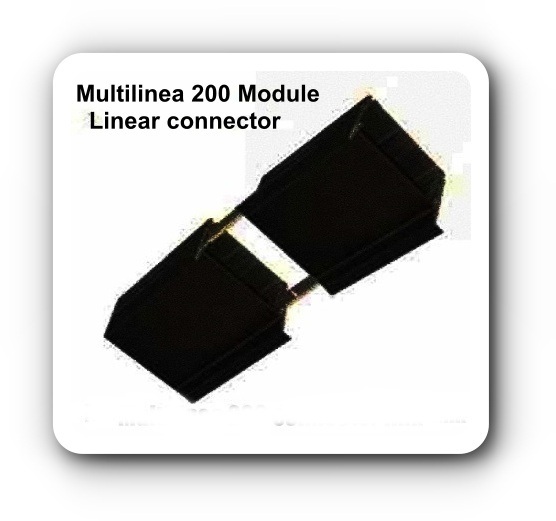

13977 : 2 channel straight link

13954  : End Cover profile

Housing : Extruded Anodized aluminium profile

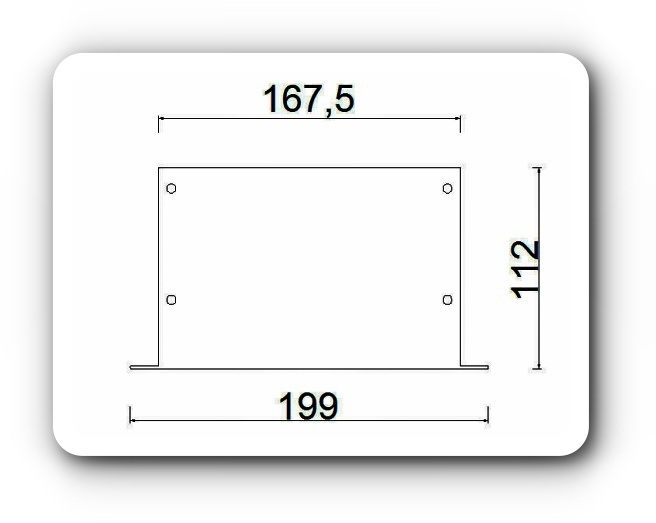

Dimensions : Standard production lengths

  • Corner 90 : 300x300mm

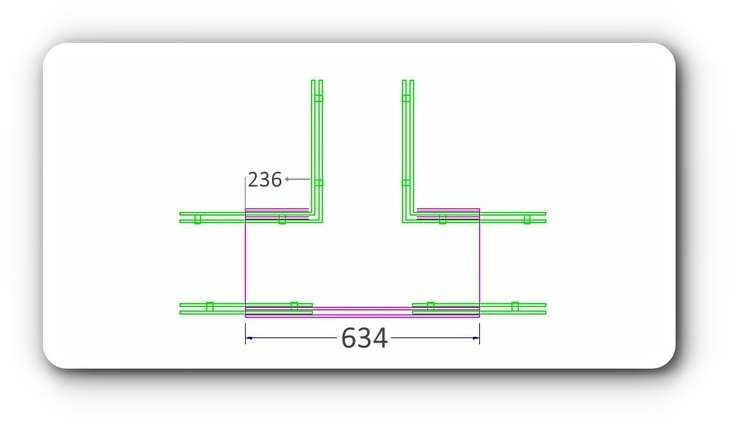

  • T-connection : 634mm

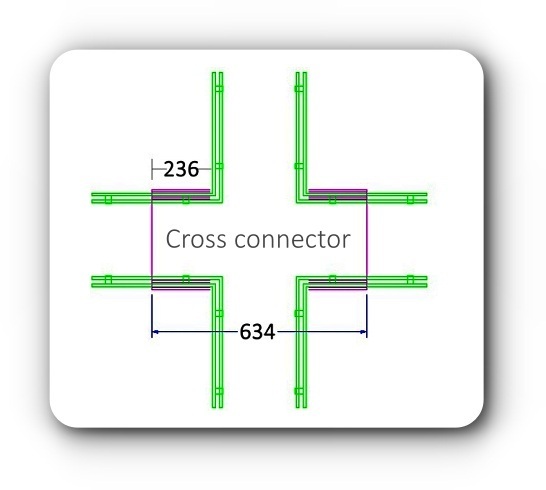

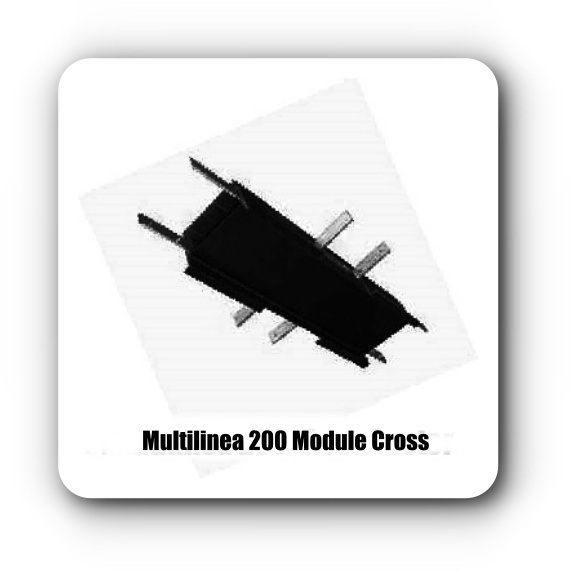

  • Cross connector : 634 mm
  • 2-channel straight link : Upon request
  • Cover profile:Upon request



  • Colours :
  • Protection class : IP20







Technical Details

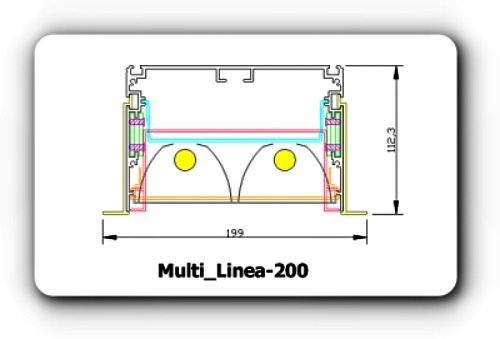

Type: Channel profile modules for luminaire system MULTILINEA 200.

Housing: Extruded aluminium profile.

Colors: Powder coated. Grey (RAL 70-47) (RW501-I) black matt (RAL 9005 Fiji), matt white (RAL 9010).

Mounting: Recessed on ceiling

Application: Indoor use only.
