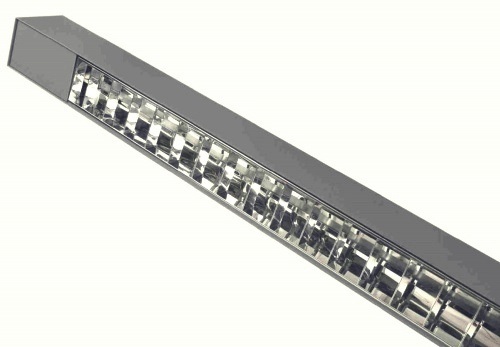

MULTILINEA 90 Channel Lighting System PARABOLIC REFLECTOR
Click to enlarge
MULTILINEA 90 Channel Lighting System PARABOLIC REFLECTORMULTILINEA 90 Channel Lighting System PARABOLIC REFLECTORMULTILINEA 90 Channel Lighting System PARABOLIC REFLECTORMULTILINEA 90 Channel Lighting System PARABOLIC REFLECTORMULTILINEA 90 Channel Lighting System PARABOLIC REFLECTORMULTILINEA 90 Channel Lighting System PARABOLIC REFLECTORMULTILINEA 90 Channel Lighting System PARABOLIC REFLECTORMULTILINEA 90 Channel Lighting System PARABOLIC REFLECTORMULTILINEA 90 Channel Lighting System PARABOLIC REFLECTORMULTILINEA 90 Channel Lighting System PARABOLIC REFLECTORMULTILINEA 90 Channel Lighting System PARABOLIC REFLECTOR

Linear surface mounted or suspended profile channel lighting system with independent luminaires modules



Product code :

  • 13400  1xT16  edition



Housing : Extruded Anodized aluminium profile

Badwick Dimensions-Watt :

  •  T16
  • 1x14/24W - 595 mm
  • 1x21/39W - 877 mm
  • 1x28/54W -1155 mm
  • 1x35/49W -1435 mm

 Input Voltage : 220-240V AC/50-60Hz,PF ≥ 0.90

Light source : 1xLinear LED or 1xT16 Fl lamp

Reflector:  Parabolic reflector

Control Gear : Built-in Constant current Led driver for Linear LED edition or Electronic ballast for T16 edition

Protection class  : IP20

Colours

Applications :



Beam Angles :



Example of Ordering Code: 13730-A-B-C-D-CC
A= Watt
B= Volt
C = Kelvin (27)-2700K (30)-3000K (40)-4000K
D = Degrees (120º)
CC=Colour (10) White (20) Black (30) Grey

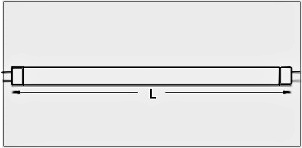

Lighting Sources  :



Accessories ordering codes:

11900     11902  11903

Technical Details

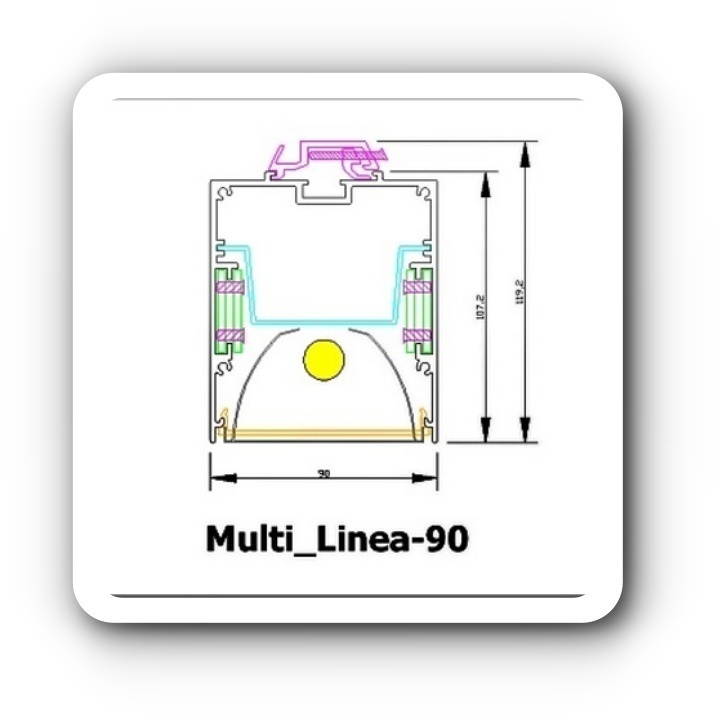

Type: Channel lighting system luminaires MULTILINEA 90 parabolic reflector module.

Installation: Surface mounted or suspended.

Housing: Extruded  aluminium profile

Reflector: Parabolic reflector made of clear aluminium 99%

Control Gear: Electronic driver for Linear LED-Electronic ballast for Fluorescent tubes T16

Dimming:Dimmable options available

  • DALI
  • 1-10V
  • Push dimming

Badwick Dimensions-Watt :

  • T16
  • 1x14/24W - 595 mm
  • 1x21/39W - 877 mm
  • 1x28/54W -1155 mm
  • 1x35/49W -1435 mm



IP: 20

Colors: Powder coated.

  • Grey (RAL 7047) (RW501-I)
  • black matt (RAL 9005 fiji),
  • white matt  (RAL 9016 fiji)

Application:

Accessories:
For single or linear mounting to be ordered separately.

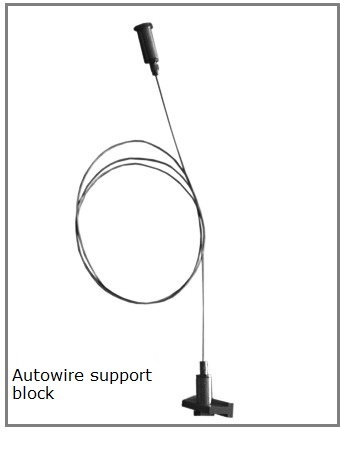

Adjustable suspension consisting of stainless steel cable and
regulators.
