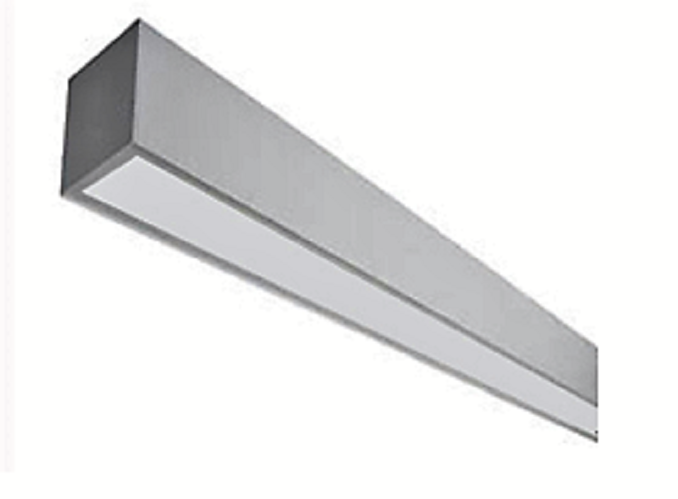

Linear surface mounted or suspended profile channel lighting system with independent luminaires modules.
Product code :
- 13730 1xLinear LED edition PMMA diffuser
- 13731 1xLinear LED edition Microprismatic
Housing : Extruded aluminium profile
Badwick Dimensions-Watt :
Linear LED edition luminaires luminus flux /4000K CRI >80
- 1x16/18W - 595mm - 2440l/2675lm
- 1x24W - 877mm - 3650lm
- 1x28/33/36W - 1155mm - 4080/4880/5350lm
- 1x32/39/43W - 1435mm - 5109/6103/6540lm
- 1x42/49/51W - 1715mm - 6130/7120/8000lm
Input Voltage : 220-240V AC/50-60Hz,PF ≥ 0.90

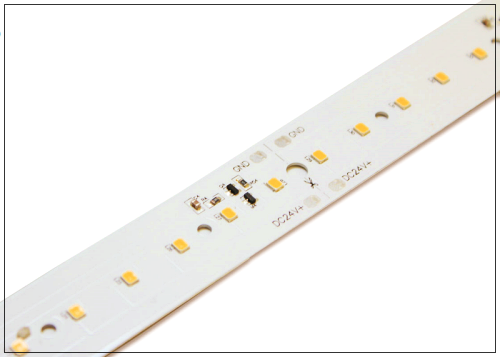

Light source : 1xLinear LED
Diffusser : Matt Opal PMMA
UGR : <19
Control Gear : Built-in Constant current Led driver for Linear LED edition or Electronic ballast for T16 edition
Protection class : IP44
Colours :
Applications :
Beam Angles :
Example of Ordering Code: 13730-A-B-C-D-CC
A= Watt
B= Volt
C = Kelvin (27)-2700K (30)-3000K (40)-4000K
D = Degrees (120º)
CC=Colour (10) White (20) Black (30) Grey
Lighting Sources :

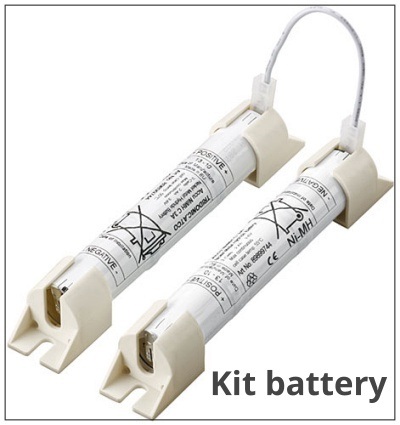

Accessories ordering codes:
11900
11902
11903
Example of Ordering Code : 11644-A-B-C-D-CC
A = Watt
B = Length
C = Kelvin (27)-2700K (30)-3000K (40)-4000K
D = Degrees (120º)
CC=Colour (10) White (20) Black (30) Grey

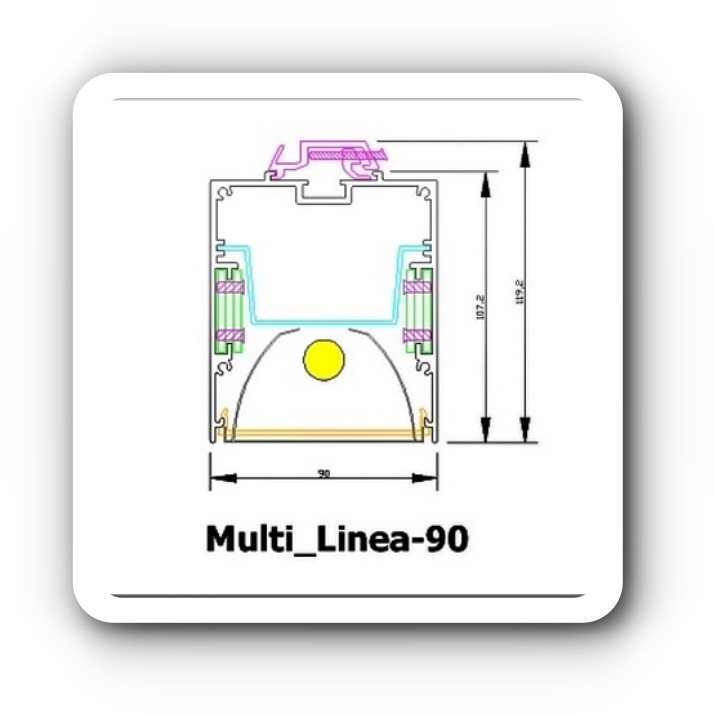

Type: Channel lighting system luminaires MULTILINEA 90.
Installation: Surface mounted or suspended
Housing: Extruded aluminium profile
Diffuser: Matt Opal PMMA diffuser, direct light emission. LT 87 high transmission diffuser.
Control Gear: Electronic driver for Linear LED-Electronic ballast for Fluorescent tubes T16
Dimming :Dimmable options available
- DALI
- 1-10V
- Push dimming
Badwick Dimensions-Watt
Linear LED edition /4000K CRI >80
- 1x16/18W - 595mm - 2440l/2675lm
- 1x24/27W - 877mm -
- 1x28/33/36W- 1155mm - 4080/4880/5350lm
- 1x32/39/43W- 1435mm - 5109/6103/6540lm
- 1x42/49/51W- 1715mm - 6130/7120/8000lm
IP: 44
IK: 05
Colors: Powder coated
- Grey (RAL 7047) (RW501-I)
- black matt (RAL 9005 fiji),
- white matt (RAL 9016 fiji)
Accessories:
For single or linear mounting to be ordered separately.
Adjustable suspension consisting of stainless steel cable and
regulators.
