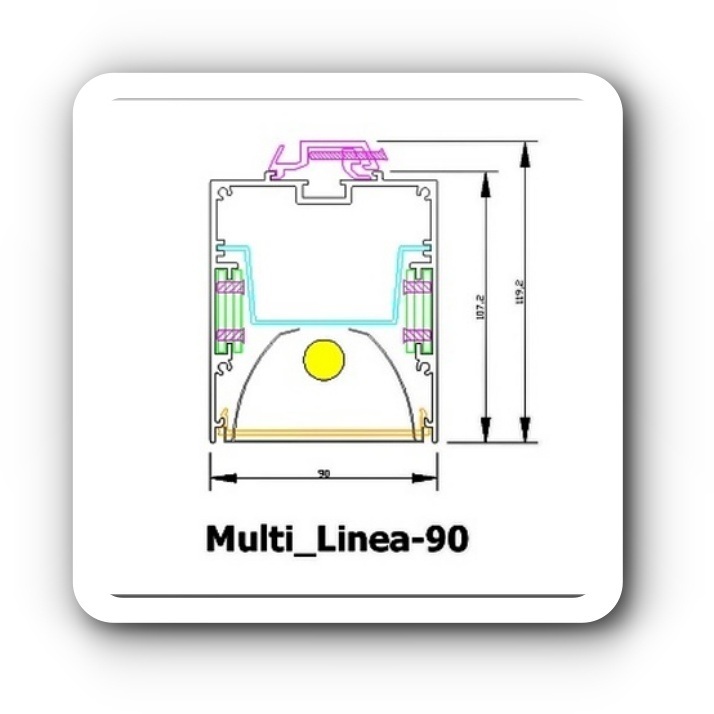

Multilinea 90 Channel lighting system

The multifunctional modules Multilinea 90 as 90 degree fixed-angle module, the 2-channel straight link, the cross-connector and the T-link offer the architect or designer the opportunity to create multiple lighting designs using models for fluorescent lighting independent lighting fixtures with spotlights, headlamps, linear LED line  light

Product code :

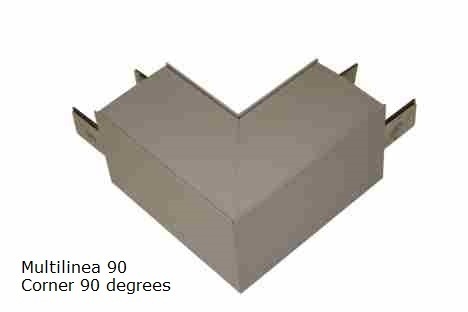

13770 : Corner 90

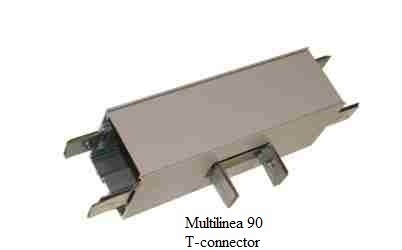

13775 : T-connection

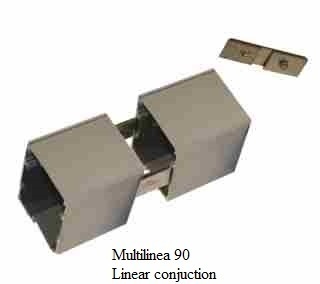

13790 : 2 channel straight link

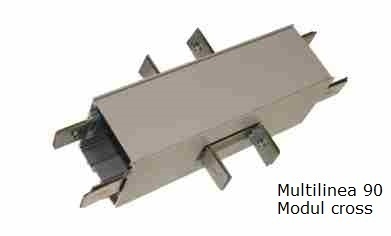

13780 : Cross connector

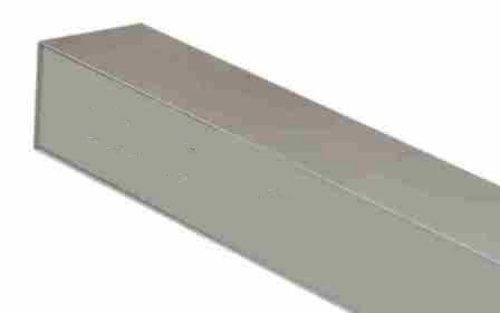

13760  : Cover profile

Housing : Extruded aluminium profile

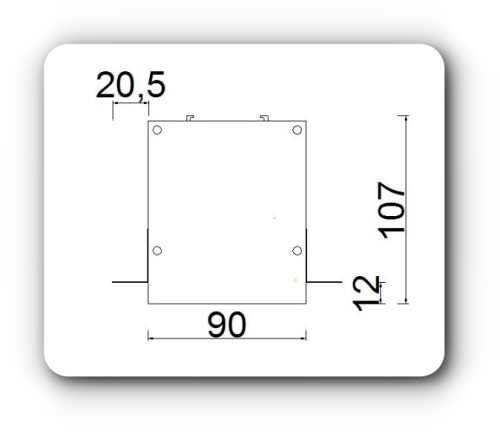

Dimensions : Standard production lengths

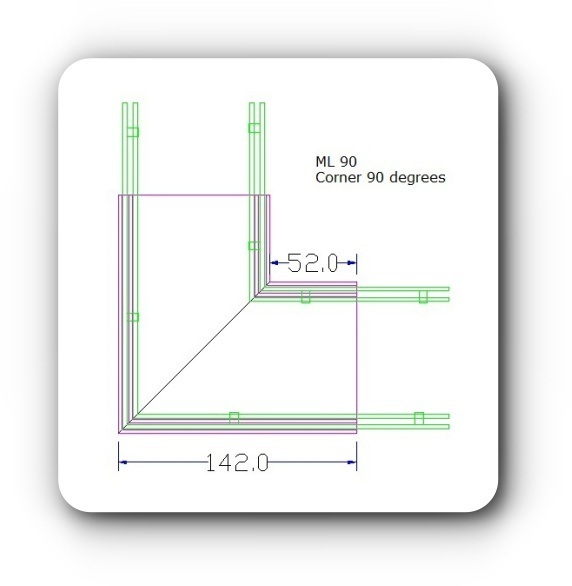

• Corner 90 :     190-100mm

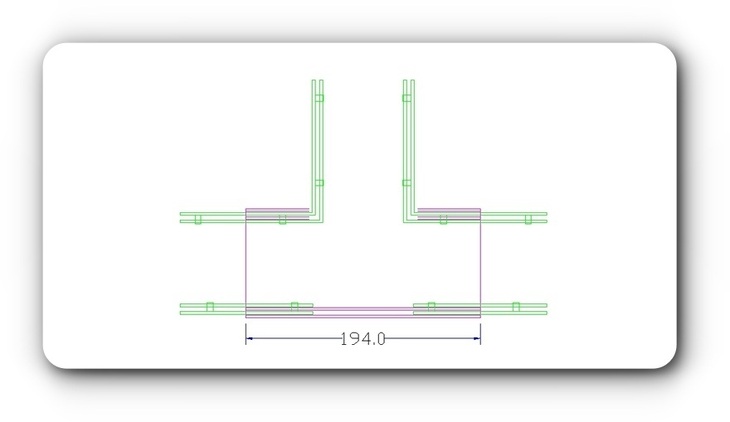

• T-connection : 290-100mm

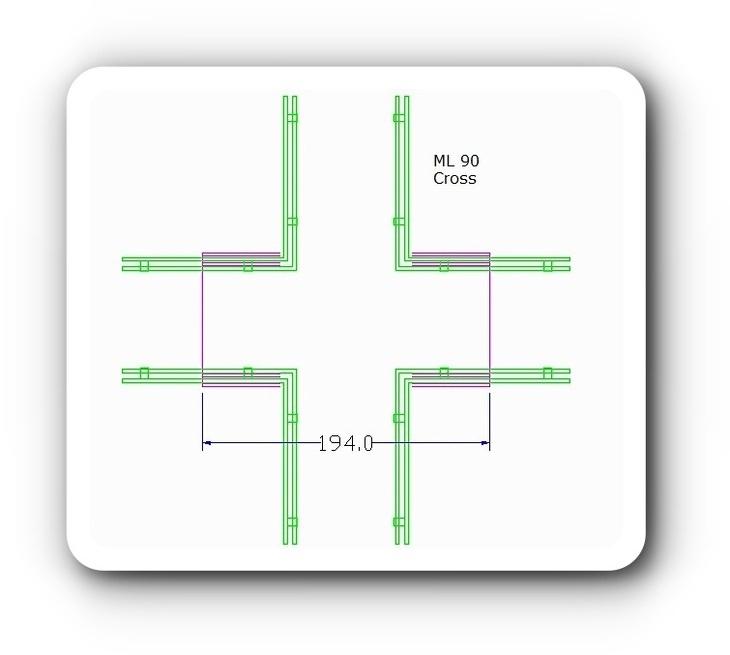

• Cross connector : 290-100mm
• 2-channel straight link :Upon request
• Cover profile:Upon request
• Colours :

• Protection class : IP20

Type: Channel profile modules for luminaire system MULTILINEA 90

Housing: Extruded aluminium profile.

Colors: Powder coated.

• Grey (RAL 70-47) (RW501-I)
• black matt (RAL 9005 Fiji),
• matt white (RAL 9010).

Application:
