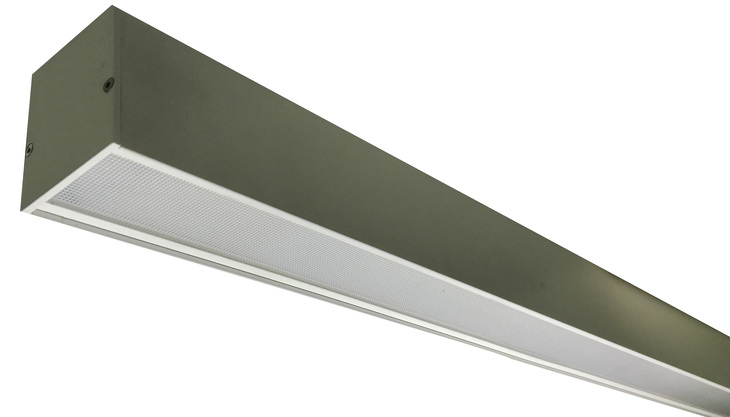

C-LINE 60 Channel Lighting System
Click to enlarge
C-LINE 60 Channel Lighting SystemC-LINE 60 Channel Lighting SystemC-LINE 60 Channel Lighting SystemC-LINE 60 Channel Lighting SystemC-LINE 60 Channel Lighting SystemC-LINE 60 Channel Lighting SystemC-LINE 60 Channel Lighting SystemC-LINE 60 Channel Lighting SystemC-LINE 60 Channel Lighting SystemC-LINE 60 Channel Lighting SystemC-LINE 60 Channel Lighting SystemC-LINE 60 Channel Lighting SystemC-LINE 60 Channel Lighting SystemC-LINE 60 Channel Lighting SystemC-LINE 60 Channel Lighting System

Linear surface mounted or suspended profile channel lighting system with independent luminaires modules.



Product code :

  • 23884 1xLinear LED edition Opal PMMA Diffuser
  • 23885 1xLinear LED edition Microprismatic

Housing : Extruded  aluminium profile

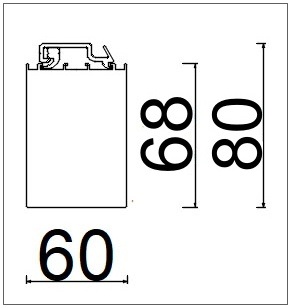

Badwick Dimensions-Watt :

  • Linear LED edition luminaires luminus flux /4000K CRI >80
  • 1x16/18W -   595mm - 2440lm
  • 1x24W       -  877mm - 3560lm
  • 1x32W       - 1155mm - 3960lm
  • 1x40W       - 1435mm - 4750lm
  • 1x48W       - 1715mm - 5950lm
  • 1X64W       - 2275mm - 7900lm



Input Voltage : 220-240V AC/50-60Hz,PF ≥ 0.90

Light source : 1xLinear LED or 1xT16 Fl led lamp

Diffusser :  Matt Opal PMMA or microprismatic diffuser

UGR : <19

Control Gear : Built-in Constant current Led driver for Linear LED edition or Electronic ballast for T16 edition

Protection class  : IP44

  • IK : 05

Colours



Applications :

Beam Angles :



Example of Ordering Code:23884-A-B-C-D-CC
A= Watt
B= Volt
C = Kelvin (27)-2700K (30)-3000K (40)-4000K
D = Degrees (120º)
CC=Colour (10) White (20) Black (30) Grey



Accessories ordering codes:

11900     11902  11903



Technical Details



Type: Channel lighting system luminaires C-LINE 60.

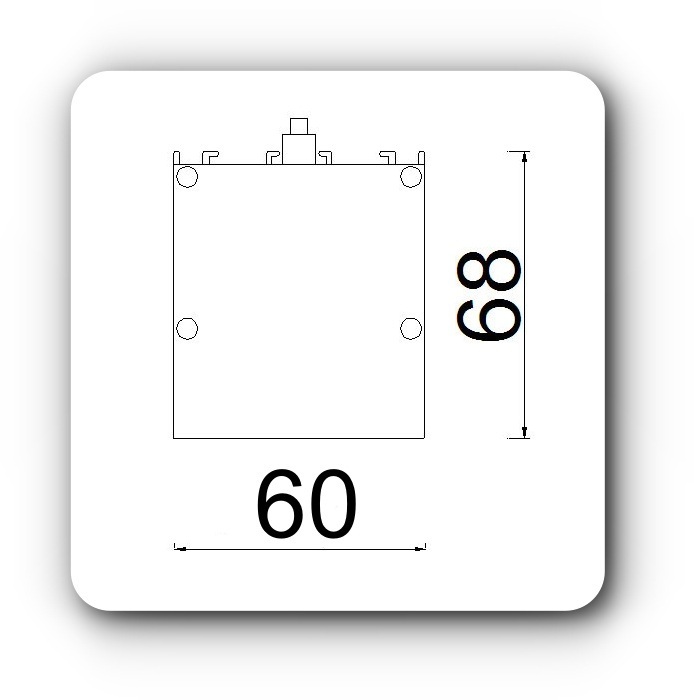

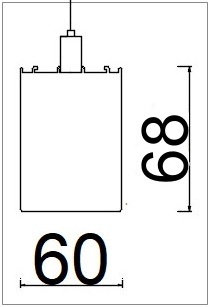

Installation:Surface mounted, Suspended

Housing: Extruded  aluminium bοdy with efficient thermal management of the led heat dissipation.

Input Voltage: 220 - 240 V AC / 50-60Hz. PF ≥ 0.90

Led Source Efficacy: 175 lm / W led nominal characteristics

Luminaire's Efficacy: Luminaire Efficacy 146 lm / W

Color Initial Tolerance: SDCM 3 ( MacAdam Step)

Supply: Built-in Constant current Led driver for Linear LED edition or Electronic ballast for T16 edition

Dimming : ON - OFF standard version

  • DALI
  • 1-10V dimmable version can be offered upon request.

Diffuser: Matt Opal PMMA or microprismatic diffuser direct light emission LT 87 high transmission diffuser

IP: 44

IK: 05

Colors: Powder coated

  • Grey (RAL 7047) (RW501-I)
  • black matt (RAL 9005 fiji)
  • white matt (RAL 9016 fiji)

Modules:

  • Modules upon reguest see C-LINE 60 support profile category

Emergency kit:

  • Standard version is offered without emergency kit.
  • Emergency kit of battery pack 1,5-3 hours can be offered upon request.
